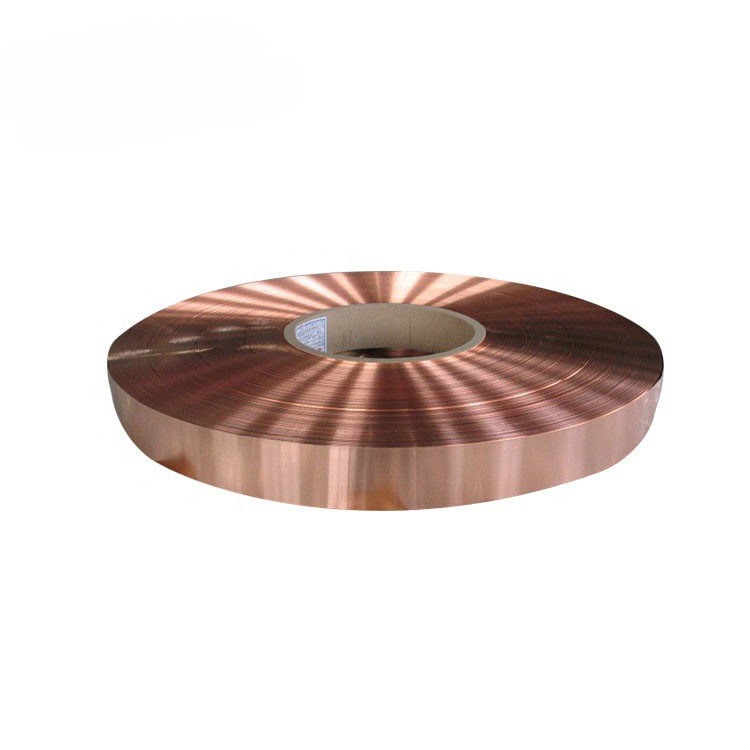

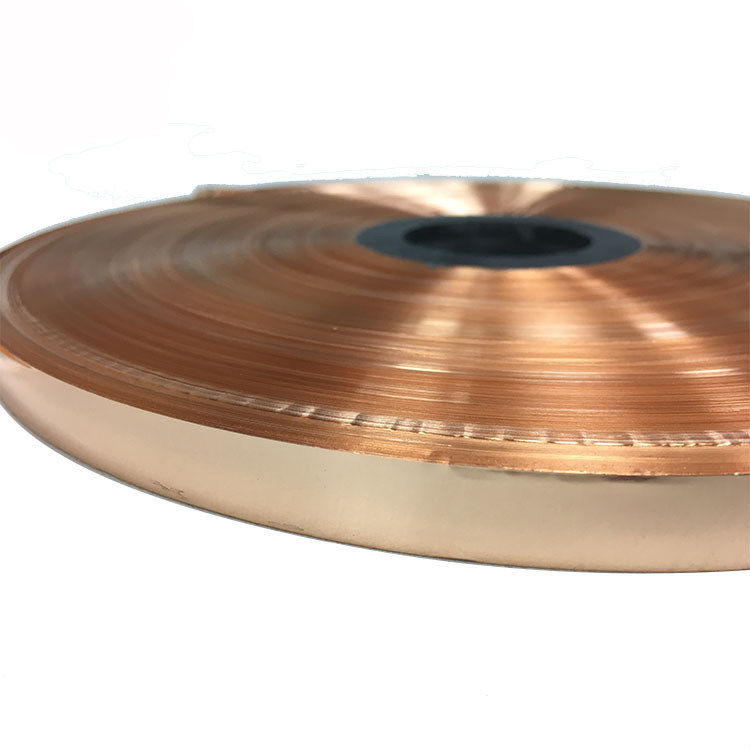

Ηλεκτρική προστασία από την EMI από καθαρό χαλκό RA
C11000 RA Χαλκό φύλλο
,100um RA χαλκό φύλλο
,50um RA χαλκό φύλλο
Περιγραφή των προϊόντων
Εφαρμογή
Το τυλιγμένο χαλκό έχει εξαιρετική αντοχή, ευελιξία, ευελιξία και γυαλιστερή επιφάνεια, καθώς και εξαιρετική μηχανική ικανότητα, που το καθιστά αναντικατάστατο ως πρώτη ύλη.Ειδικά όταν χρησιμοποιείται για μετασχηματιστή, Copper Flexible Connector, CCL, FCCL, PCB, γεωθερμική ταινία, κατασκευή, διακόσμηση κλπ.
| Δάχος | Δυνατότητα τράβηξης | Επέκταση | Θερμότητα | ΔΕΣΑ |
| μm | kgf/mm2 | % | HV | % |
| 18±5 | ≥ 8 | ≥ 4 | 55-65 | ≥ 98.3 |
| 22±5 | ≥ 10 | ≥ 4 | 55-65 | ≥ 98.3 |
| 25±5 | ≥ 10 | ≥ 5 | 55-65 | ≥ 98.3 |
| 35±5 | ≥ 15 | ≥ 8 | 55-65 | ≥ 98.3 |
| 50 ± 5 | ≥ 15 | ≥ 10 | 55-65 | ≥ 98.3 |
| 100±5 | ≥ 20 | ≥ 20 | 55-65 | ≥ 98.3 |
Ductility EMI Shielding Rolled Pure RA Copper Foil Products Description Made of pure copper, copper grade T2(China), C1100(Japan), C11000(USA), E-CU58(Germany), CU-ETP(EU, ISO). Copper purity more than 99.95%. This is RA copper foil, one side is polished side and the other side is matte. We also have ED copper foil, ED copper foil can choose one side polished and double side polished. The ED copper can have a higher purity. welcome to contact us if you need it. Width, length,
FPC FCCL FPCB 25μm 70μm Λεπτό φύλλο χαλκού RA
FPC FCCL FPCB 25μm 70μm Thin RA Copper Foil Dimension Range: Copper Foil thickness from 12~100µm can be supplied for FPC. Width can be made according to clients’ requirement up to 650mm. Applications: Flexible Copper Clad Laminate(FCCL), Fine Circuit FPC, LED coated crystal thin film, FPCB. Features: The material has higher extensibility, and has a high bending resistance and no crack. Table 1:FPC T2 high flex rolled copper foil properties (GB/T5230-2000,IPC-4562-2000) Item
Τ2 Ηλεκτρονικό ρολό χαλκού υψηλής θερμοκρασίας
T2 Conductive High Temperature Copper Foil Sheet Roll Product Profile : We developed out there treated copper foil that has very low profile, this kind of copper foil is best for high frequency application.The surface treated copper foil, like 18um, 35um, 50um usually used in Multi-layer and double face FPCB construction, We also produce heavy ED copper foil, mainly for high current FPCB construction. Mechanical Properties Sheet: Quality Items General Technical Terms 1/3oz 1
9um 12um 18um 35um Ηλεκτρονικό μαλακό φύλλο καθαρού χαλκού
9um 12um 18um 35um Electronic Soft Pure Copper Foil Description RA Copper Foil is rolled from pure copper ingots, the process including purifying copper ores, make into copper cathodes, ingoting, rolling, annealing, washing, testing, slitting and packing. Our copper ores are imported from South America, which were famous for their copper mining. This is high quality copper and has a wide range of applications based on conductivity, corrosion resistance, workability, and
πλάτος 1320mm MRI RF δωμάτιο 3oz RA χαλκό φύλλο
Width 1320mm MRI RF Room 3oz RA Copper Foil Product Description We can offer different thickness and width copper foil/ sheet for you. It is RA copper foil, which is the best shielding material for MRI RF room. In usual, 3oz thickness 1320mm width RA shielding copper foil/ sheet is our hot-sale product. Copper is durable, has superior electrical conductivity and is extremely corrosion resistant. Copper is also easily formed meaning that the shapes of the shield can be easily
